Databases with ADO.Net Example

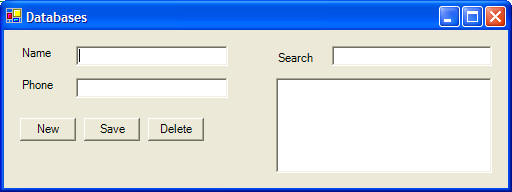

These instructions will build an example program that looks like this:

The new button creates an empty record.  The save button will update the current record being viewed.  The delete button will remove the current record being viewed.  You can search for records by typing a person's name in the Search box; the results are shown dynamically while the user types in a search word.

Download the code by clicking on the Zip file.

Instructions for Creating the Example:

1. Start Visual Studio from the Start menu.
2. Click on the New Project button in the bottom of the screen.
3. Select Visual Basic Projects, and Windows Application.  In the Name box give your project a name.

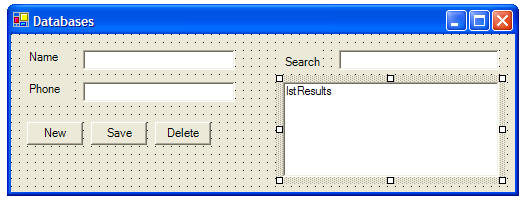

4. Layout your form like this:

The textboxes are called txtName, txtPhone, and txtSearch.  The buttons are called cmdNew, cmdSave, and cmdDelete.  The listbox is called lstResults.

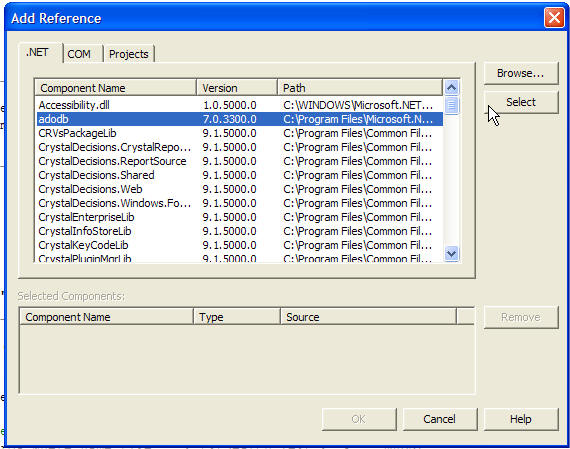

5. You must add a reference to be able to use ADO.Net.  From the Project menu, select Add Reference.

6. Select adodb from the list and click Select.

7. At the top of your code add these two lines:

' stores the connection to an Access database
Public myDB As New ADODB.Connection
' stores the ID of the current record being viewed, this is used for Saving/Updating the record
Public currentID As Integer

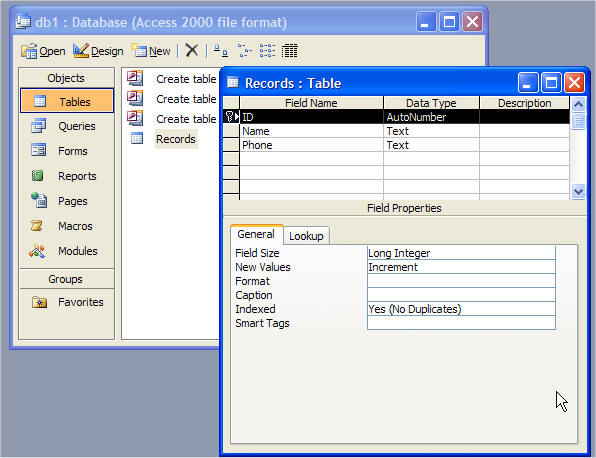

8. In Microsoft Access, create a database and save it as "db1.mdb" in the bin folder of your VB .Net project.  In this database, create a table called "records" and place two text fields: Name and Phone.  When you save your table it will create an ID field that will be auto-generated.  (The table creation process is not described in detail, as this example is mostly to describe VB .Net and not Access)

9. We'll now write three functions to handle database stuff.  The first will create new records, the second will update/save records, and the third will delete records.  Later, we will use these in the events for our buttons.  Place these three functions into your code:

Private Function CreateNewRecord() As Integer
    ' create a new record in the database

    ' create a record set, this is just a set of records
    Dim myRS As New ADODB.Recordset

    ' open the record set and have it contain all records in the database table called address
    myRS.Open("records", myDB, ADODB.CursorTypeEnum.adOpenKeyset, ADODB.LockTypeEnum.adLockOptimistic)

    ' add a new empty record
    myRS.AddNew()
    ' update the recordset to include the new entry
    myRS.Update()
    myRS.Requery()

    ' go to the record we just created
    myRS.MoveLast()
    ' grab the record's ID value so we can edit it, return this from the function
    CreateNewRecord = myRS.Fields("ID").Value

    ' close the record set
    myRS.Close()
End Function

Public Function UpdateRecord(ByVal currentID As Integer, ByVal Name As String, ByVal Phone As String)
    ' edit a record in the database

    Dim myRS As New ADODB.Recordset

    ' open a recordset from the table named address
    myRS.Open("records", myDB, ADODB.CursorTypeEnum.adOpenKeyset, ADODB.LockTypeEnum.adLockOptimistic)

    ' find the record to update
    myRS.Find("ID=" & currentID)

    ' change fields to update them
    myRS.Fields("name").Value = Name
    myRS.Fields("phone").Value = Phone

    ' update and close the recordset
    myRS.Update()
    myRS.Close()
End Function

Public Function DeleteRecord(ByVal currentID As Integer)
    ' delete a record from the database

    ' create a string variable that will hold an SQL statement
    Dim mySQL As String

    ' Example: mySQL = "Delete * from address where name='Joe Blow' "
    mySQL = "Delete * from records where name='" & txtName.Text & "'"

    ' execute the SQL command
    myDB.Execute(mySQL)

End Function

10. Double click on your form to create a Form1_Load event.  Add this code to it so you can connect to your Access database.  We start the program with a new empty record.

Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
  ' connect to the Access database

    myDB.Open("Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" & Application.StartupPath & "/db1.mdb")

  currentID = CreateNewRecord()
End Sub

11. Create a click event for the cmdNew button by double clicking on it.  Add this code:

Private Sub cmdNew_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdNew.Click
    currentID = CreateNewRecord()

    ' clear the fields
    txtName.Text = ""
    txtPhone.Text = ""
End Sub


12. Create a click event for the cmdSave button  by double clicking on it.  Add this code:

Private Sub cmdSave_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdSave.Click
    UpdateRecord(currentID, txtName.Text, txtPhone.Text)

End Sub

13. Create a click event for the cmdDelete button by double clicking on it.  We will leave a new empty record after we delete the record.  Add this code:

Private Sub cmdDelete_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles cmdDelete.Click
    DeleteRecord(currentID)
    ' clear text boxes
    txtName.Text = ""
    txtPhone.Text = ""
    txtSearch.Text = ""
    currentID = CreateNewRecord()
End Sub

14. Create a TextChanged event for the txtSearch textbox so that when someone types their keyword, the search results will update.  Add this code:

Private Sub txtSearch_TextChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles txtSearch.TextChanged
    ' search for a record

    Dim myRS As New ADODB.Recordset

    ' match the first few characters that are typed
    myRS.Open("Select * from records where name Like '" & txtSearch.Text & "%'", myDB)

    ' clear old results
    lstResults.Items.Clear()

    ' place results in the list
    While Not myRS.EOF
        lstResults.Items.Add(myRS.Fields("name").Value)
        ' go to next record in the results
        myRS.MoveNext()
    End While
    myRS.Close()
End Sub

15. When the user clicks on a search result, it will appear in the main textboxes.  Create a click event for the lstResults listbox.


Private Sub lstResults_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles lstResults.Click
    ' check if something is selected in the list
    If lstResults.SelectedIndex <> -1 Then

        Dim myRS As New ADODB.Recordset

        ' match the selected name to one in the database
        myRS.Open("Select * from records where name='" & lstResults.Items(lstResults.SelectedIndex) & "'", myDB)

        ' load the record
        txtName.Text = myRS.Fields("name").Value
        txtPhone.Text = myRS.Fields("phone").Value
        ' save the ID in case we want to update
        currentID = myRS.Fields("ID").Value

        myRS.Close()

    End If
End Sub
