Multiple Forms

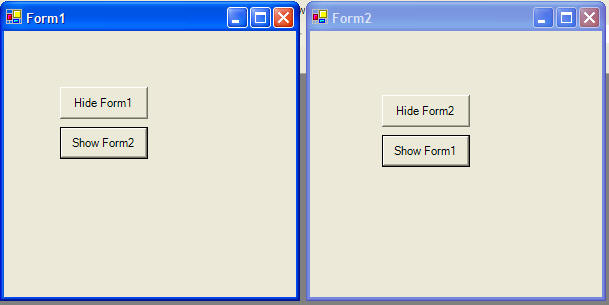

Here is the code for an example program that looks like this:

You can create multiple windows and easily move between them, hiding and showing each window.

Download the code by clicking on the Zip file.

Public Class Form1
Inherits System.Windows.Forms.Form

    ' be careful, if you hide all of the windows, your program will still be running with no visible windows
    ' you'll have to click the stop button to end the program

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        ' hide the current form
        Me.Hide()
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        ' create an instance of form2
        Dim f2 As New Form2
        ' show form 2
        f2.Show()
        ' store a reference to the main form so we can show/hide it from form2
        f2.f1 = Me
    End Sub
End Class


Public Class Form2
Inherits System.Windows.Forms.Form

    ' create a variable to save a reference to the main form (form1)
    Public f1 As Form1

    Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click
        ' hide the current form
        Me.Hide()
    End Sub

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click
        ' show form 1
        f1.Show()
    End Sub
End Class
