Databases using ADO

Download a sample VB program uses ADO with an Access database.

Instructions for Creating the Example:

1. Start Visual Basic from the Start menu.
2. Select Standard EXE, and click Open.
3. Draw two frames on your form.  In the first frame place 3 textboxes, 3 labels, and 3 command buttons.  In the second frame place 1 textbox, 1 label, and a listbox.

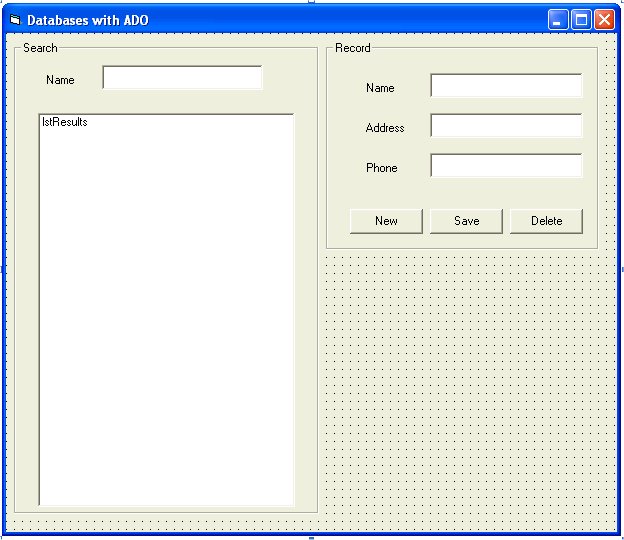

4. You can change each control's caption and text property to match this picture:

5. Change the Name property of the following controls:

Textbox 1 -> txtName

Textbox 2 -> txtAddress

Textbox 3 -> txtPhone

Textbox 4 -> txtSearch

Command 1 -> cmdNew

Command 2 -> cmdSave

Command 3 -> cmdDelete

Listbox 1 -> lstResults

6. Also, change the Sorted property of the listbox to True.

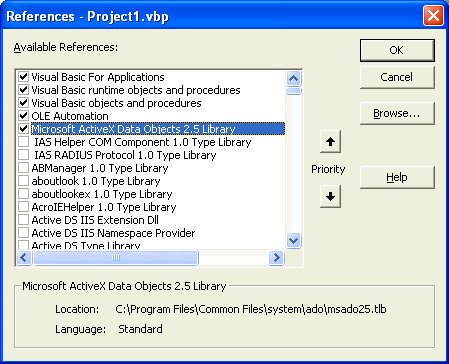

7. Go to the Project menu, then References.  In the dialog box, check off Microsoft ActiveX Data Objects 2.5 Library.  Then click OK.

8. Add the following line to the top of your code window to create a database variable:

Public myDB As New ADODB.Connection
' a variable to hold a connection to an ADO database

Public currentID As Integer
' a variable to hold the current record's ID number, it is created automatically for each record

9. Save the actual database file to your program's directory, address.mdb
10. Add the following code to Form_Load to create a connection to an Access database located in the current directory called address.mdb:

myDB.Open "Provider=Microsoft.Jet.OLEDB.4.0;Data Source=" & _
App.Path & "\address.mdb;Persist Security Info=False"

11. Here's code for the New, Save, and Delete buttons:

Private Sub cmdNew_Click()
    ' create a new record in the database

    ' clear the fields
    txtName.Text = ""
    txtAddress.Text = ""
    txtPhone.Text = ""

    ' create a record set, this is just a set of records
    Dim myRS As New ADODB.Recordset

    ' open the record set and have it contain all records in the database table called address
    myRS.Open "address", myDB, adOpenKeyset, adLockOptimistic

    myRS.AddNew

    ' set fields
    myRS!Name = txtName.Text
    myRS!address = txtAddress.Text
    myRS!phone = txtPhone.Text

    ' update the recordset to include the new entry
    myRS.Update
    myRS.Requery

    ' go to the record we just created
    myRS.MoveLast
    ' grab the record's ID value so we can edit it
    currentID = myRS.Fields("ID").Value

    ' close the record set
    myRS.Close

End Sub

Private Sub cmdSave_Click()
    ' edit a record in the database

    Dim myRS As New ADODB.Recordset

    ' open a recordset from the table named address
    myRS.Open "address", myDB, adOpenKeyset, adLockOptimistic

    ' find the record to update
    myRS.Find "ID=" & currentID

    ' change fields to update them
    myRS.Fields("name").Value = txtName.Text
    myRS.Fields("address").Value = txtAddress.Text
    myRS.Fields("phone").Value = txtPhone.Text

    ' update and close the recordset
    myRS.Update
    myRS.Close

End Sub

Private Sub cmdDelete_Click()
    ' delete a record from the database

    Dim answer As String
    ' confirm the user really wants to delete the record
    answer = MsgBox("Are you sure you want to delete " & txtName.Text & "?", vbYesNo, "Delete")

    If answer = vbYes Then

        ' create a string variable that will hold an SQL statement
        Dim mySQL As String

        ' Example: mySQL = "Delete * from address where name='Joe Blow' "
        mySQL = "Delete * from address where name='" & txtName.Text & "'"

        ' execute the SQL command
        myDB.Execute (mySQL)

        ' feedback for user
        MsgBox txtName.Text & " was deleted from the database.", vbOKOnly, "Deleted"

        ' clear text boxes
        txtName.Text = ""
        txtAddress.Text = ""
        txtPhone.Text = ""
    End If
End Sub

12. Add another line of code to Form_Load that will create a record when the program starts (or the Save button will crash):

Call cmdNew_Click

13. We'll search for records when someone types in the search box (continuous updates of results is a characteristic of a dynamic query).  Add this code to txtSearch's Change event:

Private Sub txtSearch_Change()
    ' search for a record

    Dim myRS As New ADODB.Recordset

    ' match the first few characters that are typed
    myRS.Open "Select * from address where name Like '" & txtSearch.Text & "%'", myDB

    ' clear old results
    lstResults.Clear

    ' place results in the list
    While Not myRS.EOF
        lstResults.AddItem myRS.Fields("name").Value
        ' go to next record in the results
        myRS.MoveNext
    Wend
    myRS.Close

End Sub

14. Then if someone clicks on a record in the results list we'll load it up.  Add this code to the Listbox's Click event:

Private Sub lstResults_Click()
    ' check if something is selected in the list
    If lstResults.ListIndex <> -1 Then

        Dim myRS As New ADODB.Recordset

        ' match the selected name to one in the database
        myRS.Open "Select * from address where name='" & lstResults.List(lstResults.ListIndex) & "'", myDB

        ' load the record
        txtName.Text = myRS.Fields("name").Value
        txtAddress.Text = myRS.Fields("address").Value
        txtPhone.Text = myRS.Fields("phone").Value
        ' save the ID in case we want to update
        currentID = myRS.Fields("ID").Value

        myRS.Close

    End If
End Sub
