Dynamic Array of Structures

Download a sample VB program that creates a dynamic array.

Instructions for Creating the Example:

1. Start Visual Basic from the Start menu.
2. Select Standard EXE, and click Open.
3. Draw two frames on your form.  In the first frame place 3 textboxes, 3 labels, and a command button.  In the second frame place 1 textbox, 1 label, and a listbox.

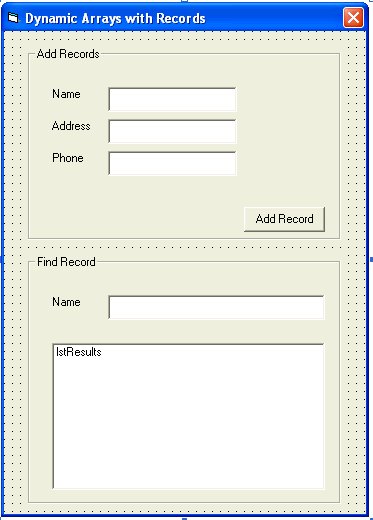

4. You can change each control's caption and text property to match this picture:

5. Change the Name property of the following controls:

Textbox 1 -> txtName

Textbox 2 -> txtAddress

Textbox 3 -> txtPhone

Textbox 4 -> txtSearch

Command 1 -> cmdNew

Listbox 1 -> lstResults

6. Also, change the Sorted property of the listbox to True.
7. We now are going to add a Module to create some public variables.  Click on the New Form icon's drop down arrow and select Module from the menu.  Then click Open in the dialog box.

7. In the Project Explorer, select the new module by clicking on it and then change its name in the Properties toolbar to structures.

8. Add this code in the module to create our dynamic array

' create a person record
Public Type person
    name As String
    address As String
    phone As String
End Type


' the total number of records + 1 extra for a new record
Public numberOfRecords As Integer


' a dynamic array to store records
Public myAddressBook() As person

9. Let's add code to the Add Record button.  We'll first store the new record in our array, increase the size of the array, and write append the record to our file.

Private Sub cmdNew_Click()

    ' store the new record in our array
    myAddressBook(numberOfRecords - 1).name = txtName.Text
    myAddressBook(numberOfRecords - 1).address = txtAddress.Text
    myAddressBook(numberOfRecords - 1).phone = txtPhone.Text

    numberOfRecords = numberOfRecords + 1
    ' make our array grow
    ' preserve keeps our old records intact
    ReDim Preserve myAddressBook(numberOfRecords) As person


    Dim fileNumber As Integer
    fileNumber = 1

    ' open a file for output in the application's directory
    Open App.Path & "\addbook.txt" For Append As #fileNumber

    ' write out each portion of data
    Print #fileNumber, txtName.Text
    Print #fileNumber, txtAddress.Text
    Print #fileNumber, txtPhone.Text

    ' close the file
    Close #fileNumber

    ' clear the text input
    txtName.Text = ""
    txtAddress.Text = ""
    txtPhone.Text = ""
End Sub

10. In Form_Load we will search through a file that contains our address book entries from previous runs of the program and load them into the array.  If the file doesn't exist we will ignore it and start with an empty set of records.

Private Sub Form_Load()

    ' start with one empty record in our array
    numberOfRecords = 1
    ReDim Preserve myAddressBook(numberOfRecords) As person

    ' make sure our input file exists before we try to load records from it
    If Dir$(App.Path & "\addbook.txt") = "" Then
        Exit Sub
    End If

    ' will hold a line from our file when we read in
    Dim temp As String

    Dim fileNumber As Integer
    fileNumber = 1

    ' open file for reading
    Open App.Path & "\addbook.txt" For Input As #fileNumber

    While Not EOF(1) ' while we have not reached the end of file 1

        ' read a line, place contents in temp, then add to address book
        Line Input #fileNumber, temp
        myAddressBook(numberOfRecords - 1).name = temp
        Line Input #fileNumber, temp
        myAddressBook(numberOfRecords - 1).address = temp
        Line Input #fileNumber, temp
        myAddressBook(numberOfRecords - 1).phone = temp

        numberOfRecords = numberOfRecords + 1
        ' make our array grow
        ' preserve keeps our old records intact
        ReDim Preserve myAddressBook(numberOfRecords) As person
    Wend

    ' close the file
    Close #1

End Sub

11. Our search will be a simple linear search through the array.  We'll search as someone types in the textbox meaning our code must go in the Change event for txtSearch.

Private Sub txtSearch_Change()
    ' clear results
    lstResults.Clear

    ' count the number of letters to compare
    letters = Len(txtSearch.Text)

    ' check each element in the array to see if the name matches
    For i = 0 To numberOfRecords - 2
        ' compare only the number of letters typed in, grab the first few letters of the string with Left
        If Left(myAddressBook(i).name, letters) = Left(txtSearch.Text, letters) Then
            lstResults.AddItem myAddressBook(i).name & ", " & myAddressBook(i).phone
        End If
    Next i

End Sub
